How to Export to SIEM

Security Information and Event Management (SIEM) tools provide real-time analysis of security events from applications and network devices. SIEM systems are essential for SecOps teams to correlate events, analyse logs across different systems, and manage security risks efficiently. By integrating the Forensic Acquisition and Investigation platform with SIEM, you can leverage the power of both SIEM and FA&I unique cloud-based forensic capabilities.

Export Formats

FA&I converts the processed timeline into two formats:

• CEF (Common Event Format): A widely recognized format for SIEM systems
• CadoJson: A custom JSON format optimized for certain SIEM systems like Splunk and Sentinel

Supported Cloud Providers

Both formats are uploaded to the cloud storage location of your choice. You can select from the following providers:

Provider	Storage Type
AWS	S3 bucket
Azure	Blob Storage container
GCP	Cloud Storage bucket

You configure the provider, account, bucket, and folder name, then set up your SIEM system to automatically import these files from that location.

Getting Started

To begin exporting timelines to your SIEM:

1. Enable the SIEM integration by navigating to Settings -> Platform Settings -> Integrations -> SIEM.
2. Select your cloud provider (AWS, Azure, or GCP)
3. Choose the account and bucket where the timeline files will be exported
4. Set the desired folder name within the bucket

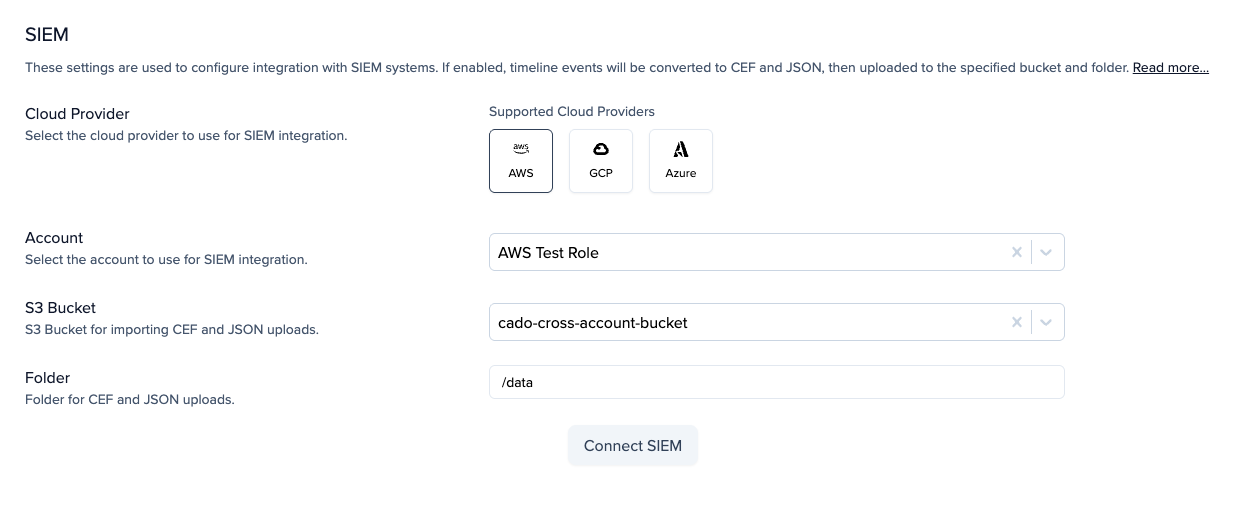

AWS

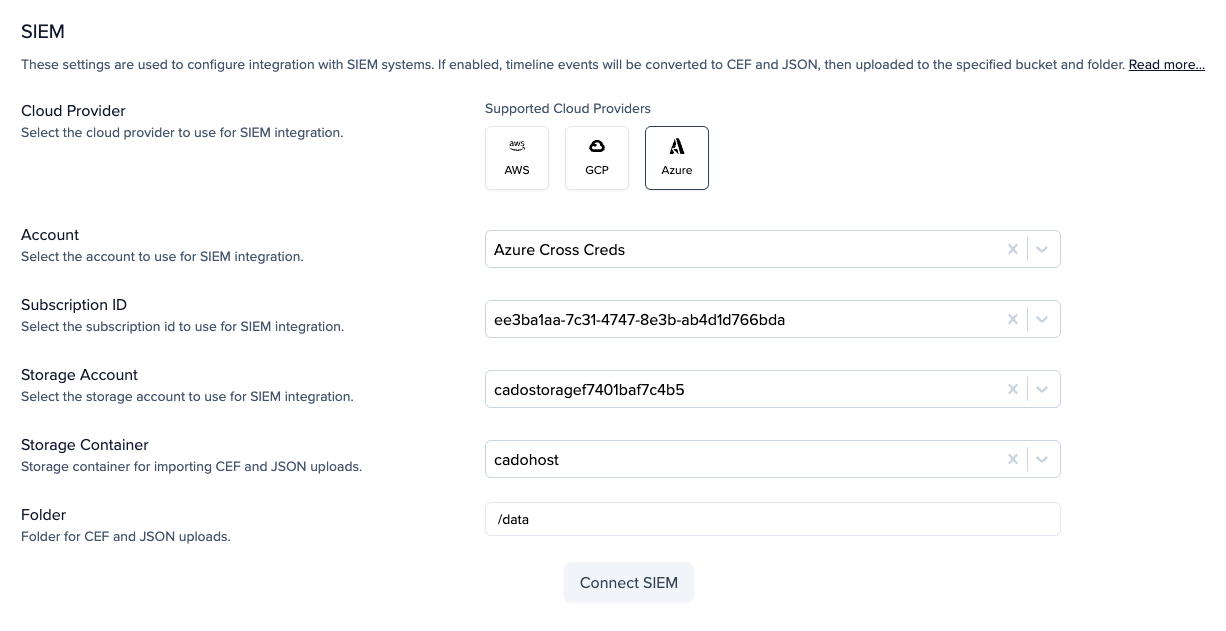

Azure

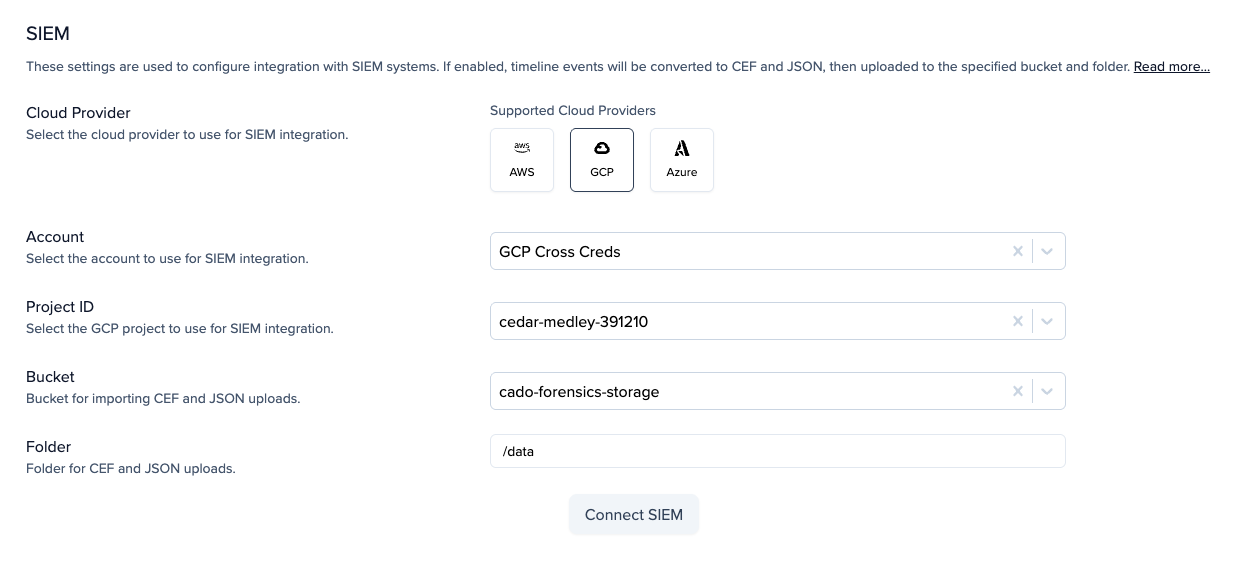

GCP

FA&I CEF Standard

Below is an example of a CEF log generated by / Forensic Acquisition and Investigation:

CEF:0|CadoSecurity|CadoResponse|1.0.2|0|Content Modification Time|10|alarm=True evidence_id=2 evidence_name=aws_compromise.zip macb=M... source=FILE eventTime=1595194940 filePath=/tmp/file.txt eventId=Q5FBqHwBX9dvp1T5IsHT msg=Malicious File Detected: cryptomining_malware_wannamine

The CEF log follows this standard format:

CEF:0|CadoSecurity|CadoResponse|Version|Signature ID|Name|Severity|Extension

The "Extension" part contains key-value pairs with additional fields, as detailed below.

CEF Extensions

EXTENSION FIELD	EXAMPLE VALUE	TYPE	DESCRIPTION
eventTime	890430600	int	Unix timestamp of the event.
source	REG	str	Subtype of the event source.
sourcetype	LOG	str	Type of file or data producing the event.
type	Content Modification Time	str	Event type (e.g., Last Executed Time, Content Modification Time).
filePath	/Users/nromanoff/NTUSER.DAT	str	Path of the file linked to this event.
short	Executable in suspicious location	str	Summary of the event.
evidence_id	1	int	ID of the evidence item in / Forensic Acquisition and Investigation.
alarm_severity	1	int	Event severity (Malicious: 1, Suspicious: 3, Other: 10).
macb	.A..	str	MACB (Modification, Access, Change, Birth) representation.
host	EC2AMAZ-T80EJE1	str	Hostname linked to the event.
inode	123	str	Inode or file system identifier.
alarm	True	bool	Whether this event has an associated alarm.
sha256	9473976...	str	SHA-256 hash of the related file.

CadoJson Format

The CadoJson format contains the same fields as CEF, represented in JSON structure. Here is an example:

{
	"macb": "M...",
	"source": "REG",
	"sourcetype": "Registry Key",
	"type": "Content Modification Time",
	"host": "-",
	"short": "[HKEY_CURRENT_USER/AppEvents/Schemes/Apps/.Default/Notification.Proximity] (empty)",
	"inode": "-",
	"sha256": "9473976b2769337ca9a7243bf1ceddb3335f9551e113240ebb0c53ae789878d5",
	"eventTime": 1610559005,
	"filePath": "/NTUSER.DAT"
}

Log Analysis Considerations between SIEM & Cado

For more information about how SIEM logs compare to Cado's forensic capabilities, refer to this guide.
